Even if it is small, it cuts well! Compact small single-edged nippers
The Blade One Mini is a small, single-edged nipper that is easy to handle even for those with smaller hands.

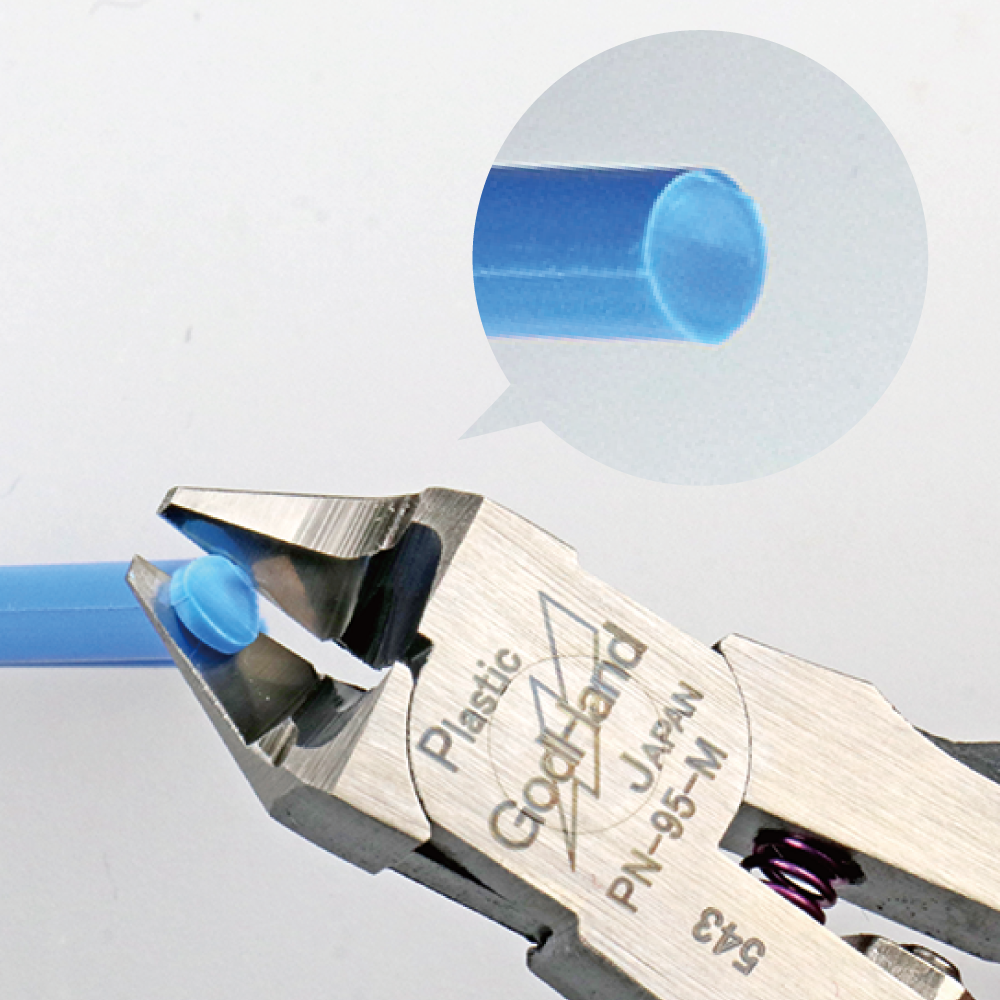

The sharpness is the same as that of the single-edged nipper standard model, and a beautiful cut surface can be obtained by slicing cutting.`

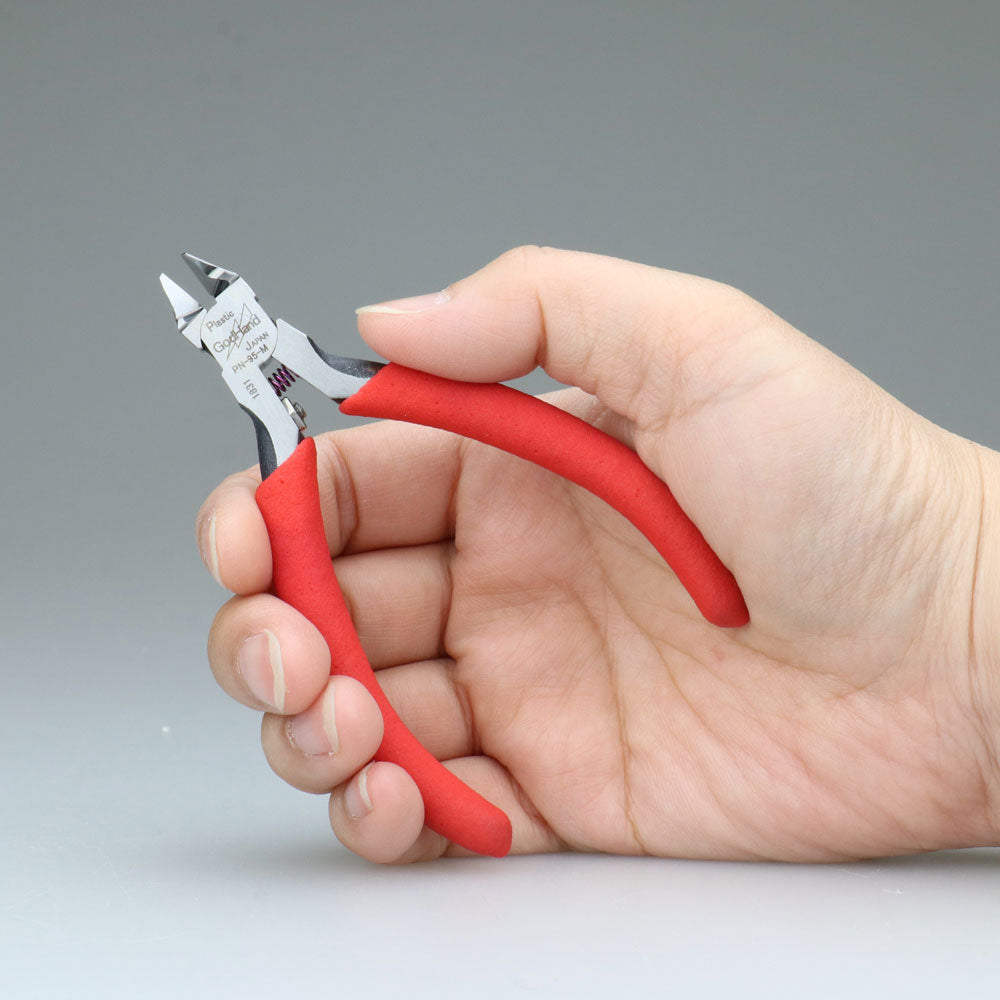

- The thick and short grip fits the palm of your hand, so even if you have a small hand, it is difficult to slip out when you grip it, making it easy to handle.

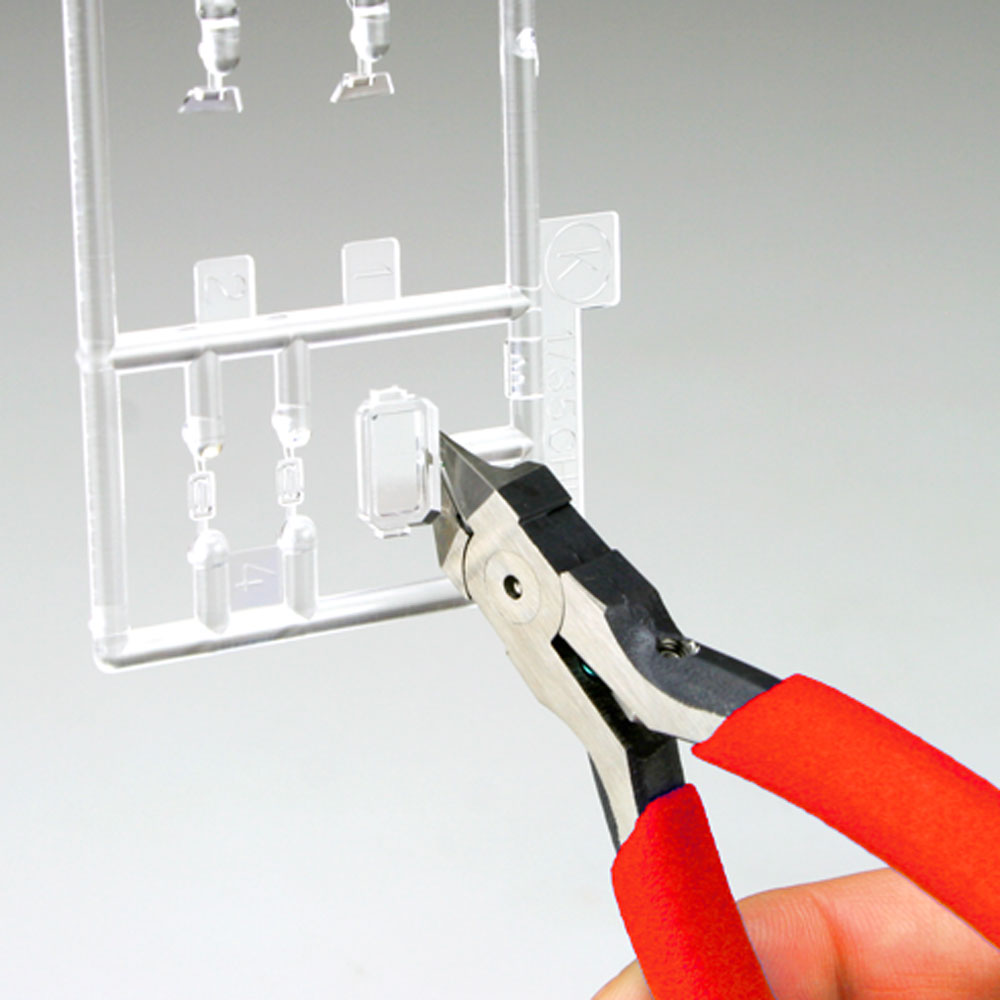

- The blade is thick and durable, so even those who are not used to single-edged nippers can use it with confidence without worrying about the blade breaking. It is also possible to cut the gate of hard clear parts and the spout of the resin kit.

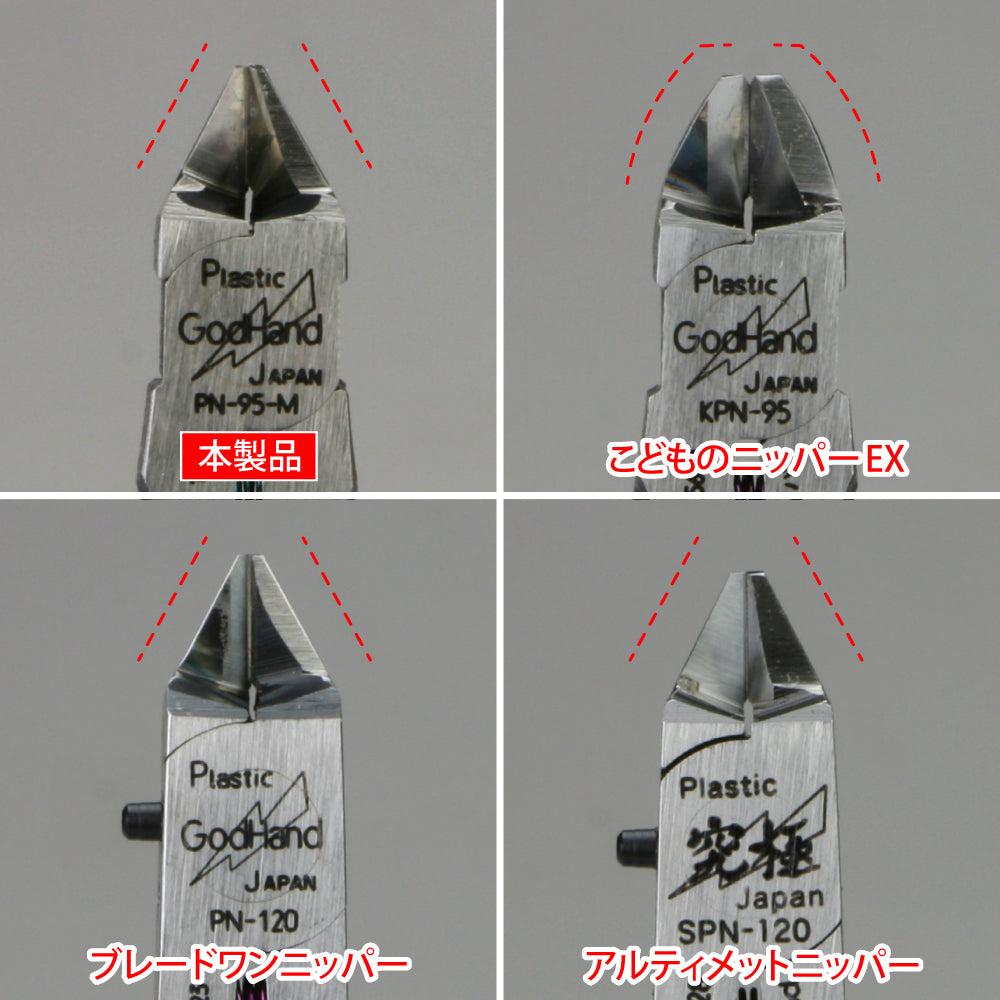

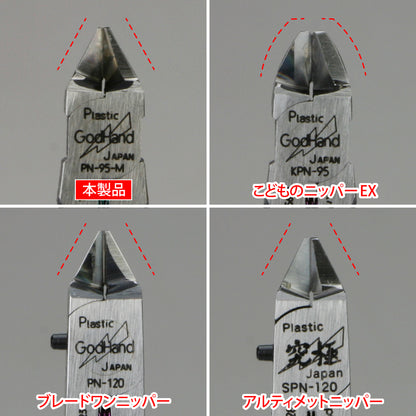

- Since the cutting edge is tapered toward the tip, you can cut out the part by firmly inserting the blade into the gate part.

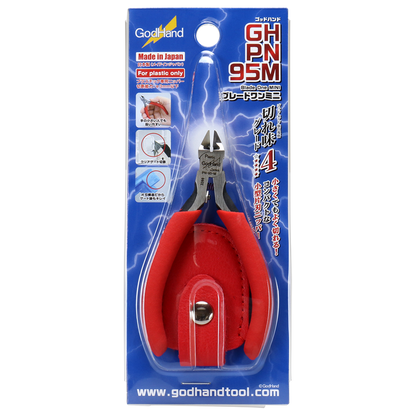

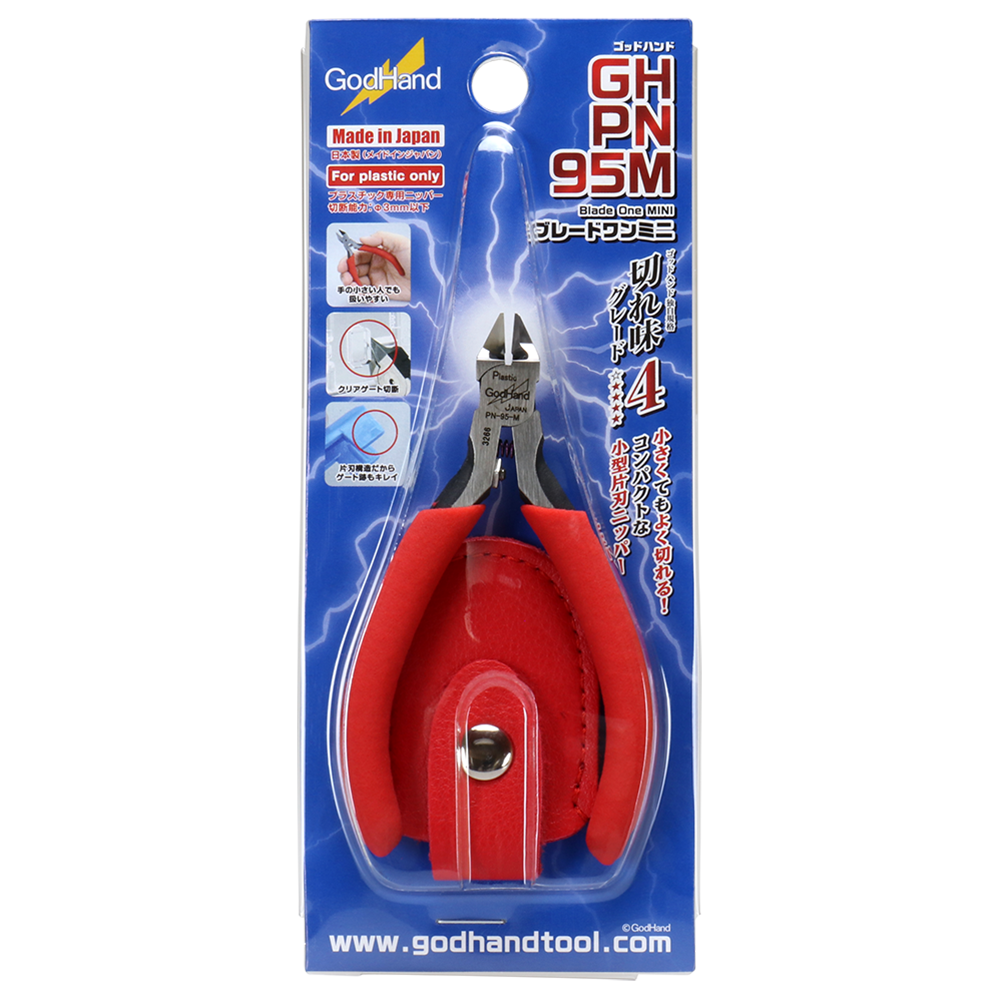

- It's compact, so it's easy to carry! If you use the included nipper cap with hooks, you can carry it more safely.

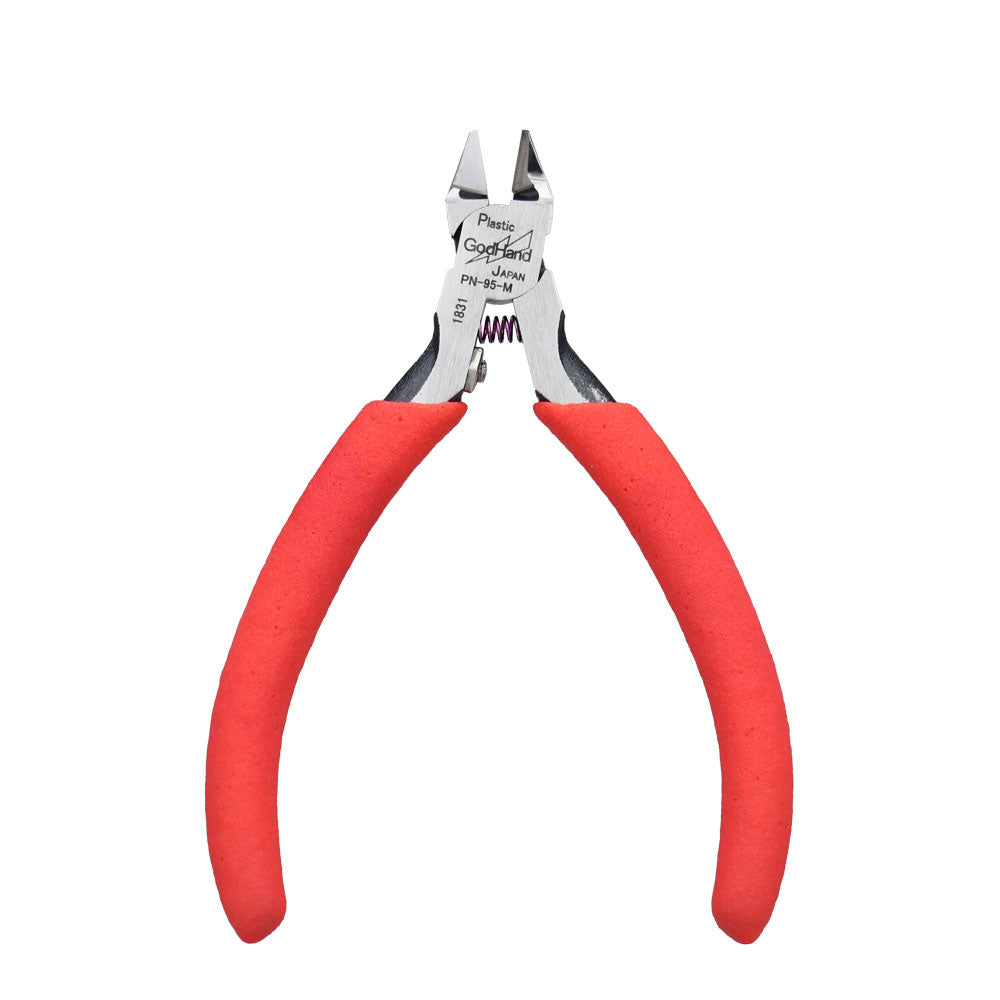

Blade One Mini
Product number: GH-PN-95-M
- Specifications

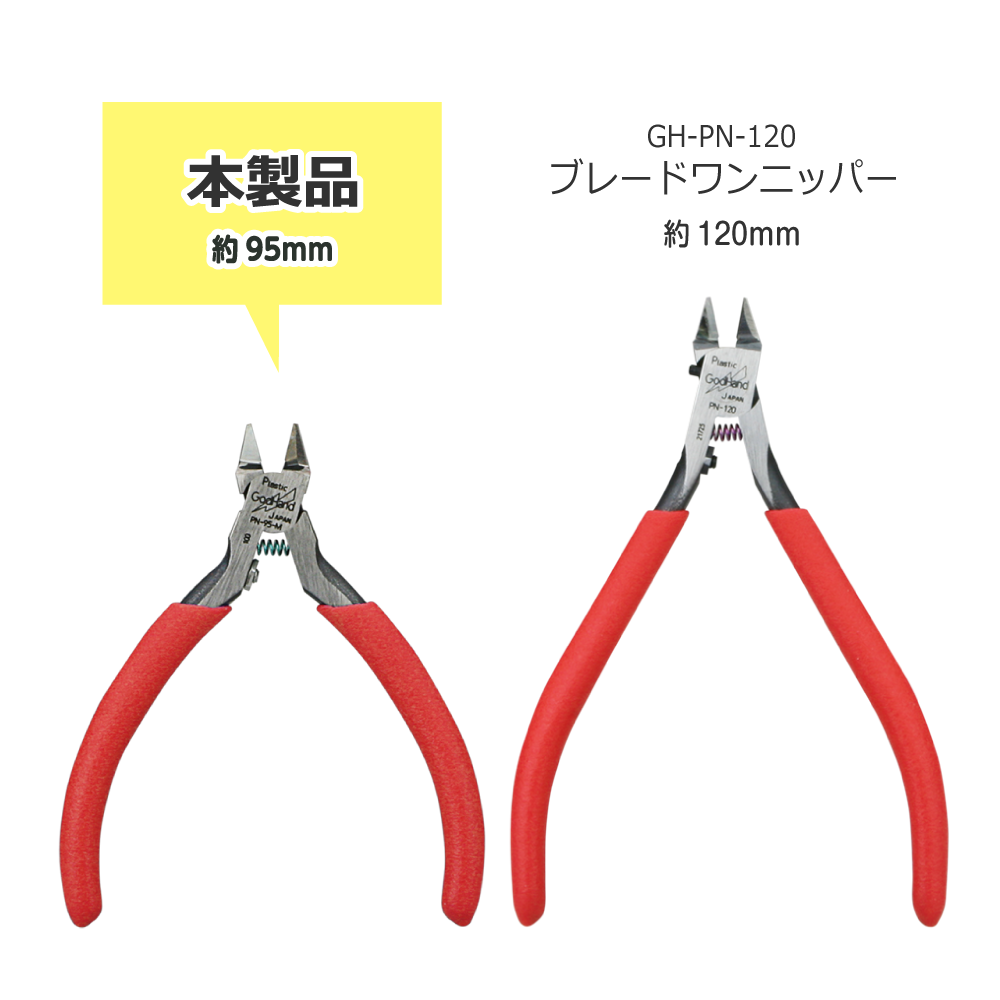

- Total length: about 95 mm - Weight: about 50 g - Single-edged specification
- Blade breakage prevention stopper - With spring - Nipper cap with hook
- Cutting
ability
- Compatible materials: Plastic (PS resin, PP resin, ABS resin, PE resin), resin kit spout.
・Cutting capability: Plastics of Φ3 mm or less, but transparent and translucent PS resin is limited to gates of Φ2 mm or less (* "Hard runners" such as transparent and translucent PS resins are not supported). Resin kit spout of Φ2mm or less.
⚠ Precautions
・For your safety, please wear safety glasses.
・ There is a risk of cutting objects flying, so make sure that there are no people around and that there are no fragile items before working.
・Do not touch the cutting edge directly.
・Do not apply more load than you are capable of. Pay particular attention to the load on the tip.
・To prevent rust, wipe off dirt and fingerprints, and apply oil to the shaft and cutting edge. Moisture is also a factor in rust, so be sure to apply oil frequently during the rainy season.
・During and after use, remove chips from the blade with a blade brush. If you use the blade or with chips left at the base of the blade, it will put more load than necessary and cause damage or rattling.
・During and at the end of cutting, try not to twist the blade as much as possible.
・When cutting, cut in the middle of the blade. The tip of the blade is easy to break, so do not cut it with the tip.
・If you spread the grip too wide, the spring may come off. It may fly when the spring is removed, so be careful not to lose it. If the spring comes off, put it back in its original place.
・Do not use for cutting materials that are thicker than the cutting capacity or that are not compatible (metal, wood, paper, stone, etc.).
・The cap may transfer color when wet. Please be careful when storing nippers.
・Store in a case out of reach of small children.
